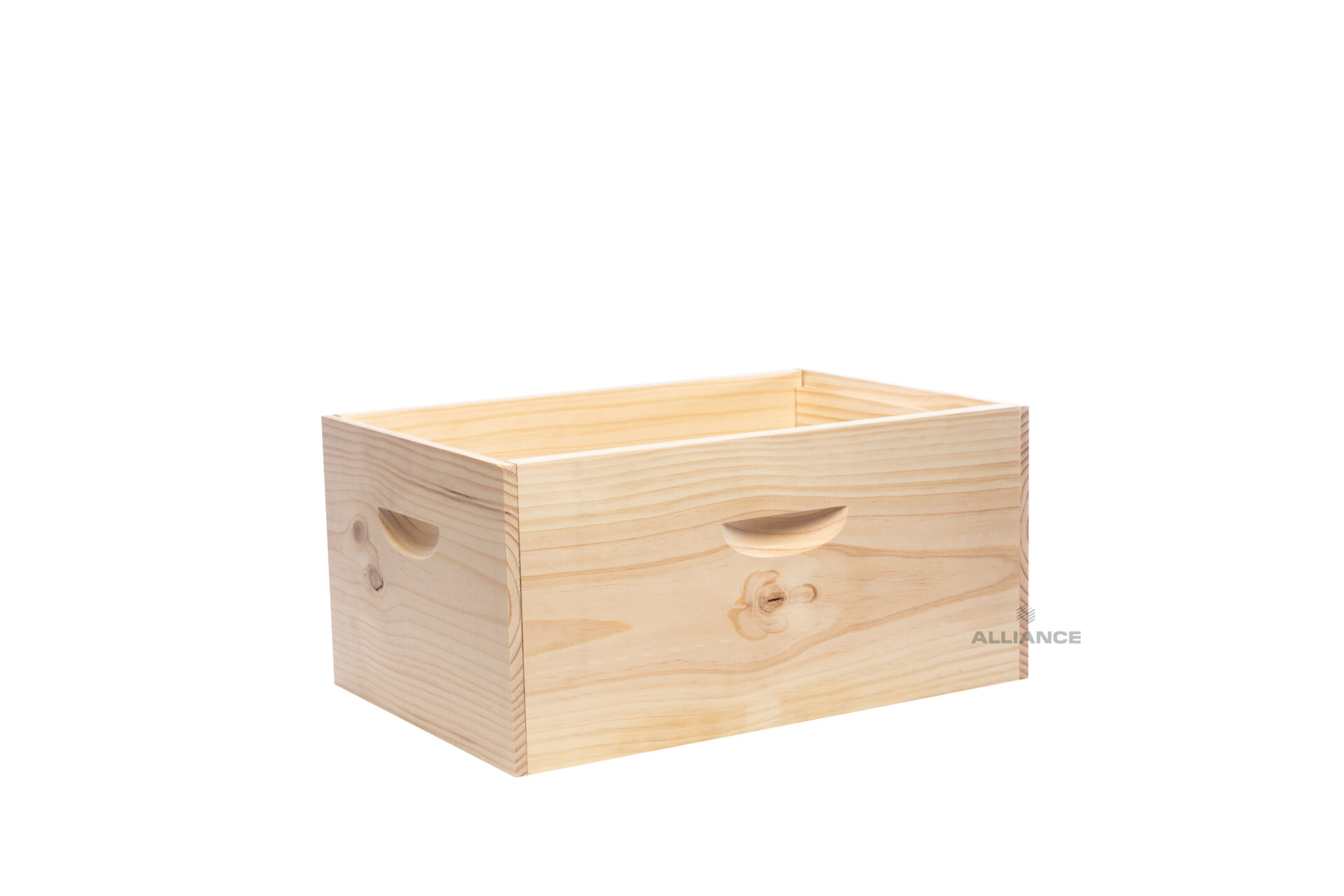

Alliance Deep Box (9 5/8″) Rebated Standard Grade (7/8’’ lumber)

SKU: ALBX1SR1

Product Description

Made from 7/8″ thick New Zealand Radiata lumber Alliance boxes carefully crafted with consistent quality for effortless assembly. Kiln-dried to 12% moisture content in our special seasoning kilns Alliance boxes provide stability and great resistance to shrinking, twisting and warping. Higher strength New Zealand Radiata lumber is a lot more robust and offers longer lifespan.
Standard grade boxes contain tight knots which guarantee the integrity of the hive at an affordable price.
There is always clearance between the knot and the edge of the box, removing any risk of edge cracking or fallout, and knots are kept away from the middle of the handle to maintain the utmost strength.
These are high-performance/low-cost hives well suited for commercial operations.

Langstroth sizes

Kiln dried to prevent warping

No blue/grey sapstain

NZ grown Radiata Pine

Standard Grade: Tight knots

Precision machined for easy assembly

Measurement System

Imperial measurements
Metric measurements

External Dimension

20" × 16 5/8" × 9 5/8"
508mm x 422mm x 243mm

Internal Dimension

18 1/4" × 14 7/8" × 9 5/8"
464 mm × 378 mm × 243mm

Lumber thickness

22mm
7/8’’

Flatpack, requires assembly. You can assemble using screws, Nails or staples.
For best result use galvanized or stainless steel wood screws with 1.5–2″” (38–50mm) length

Material: New Zealand Radiata Pine
Moisture Content: 12% for stability
Grade: Standard (tight knots)
Joint: Rebated profile
Distinctive Handle: Angle-cut deep handle
Weight: 4kg / 8.8lb

Compatible with standard Langstroth hives. You can add these boxes effortlessly to your exiting operation and your existing stock should match. Fits deep frames (ALFR13G303).

When unassembled store in a dry area away from direct sunlight to ensure easy assembly. To preserve and increase durability you can wax dip or paint the boxes. For the best result boxes can be wax dipped & painted to obtain maximum lifespan.

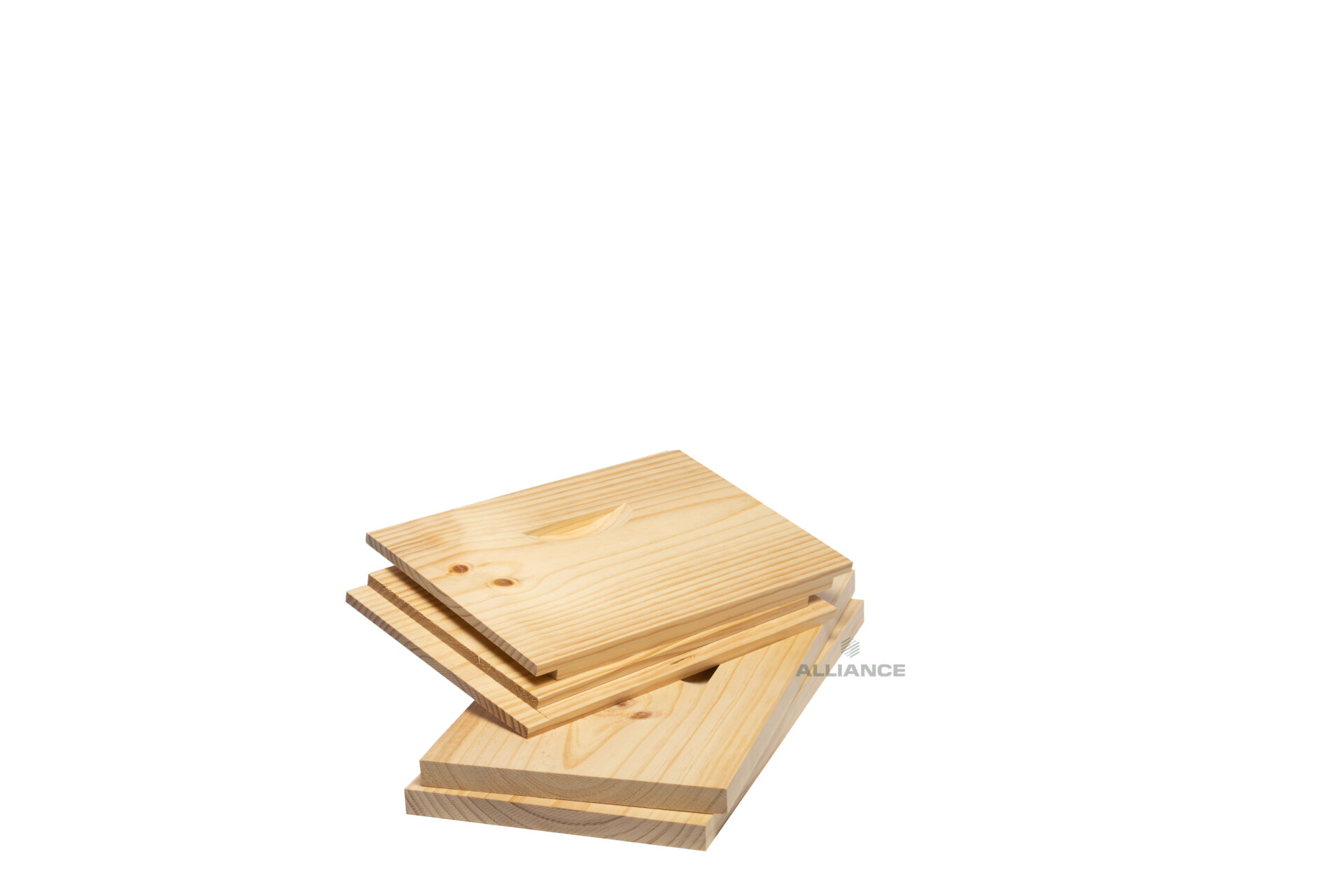

Shipped flat. Palletized in bundles 10 sides/ends.

Talk To An Expert

FREQUENTLY ASKED QUESTIONSGot a question?

  • How does the rebated profile differ from finger joint?

    It’s a traditional, cost-effective joint compared to finger joints, with no predrilled holes. Finger joint box performs better and provides greater stability especially for pollination purposes. Rebated boxes are lightly cheaper alternative with easier assemble and lesser end grain exposure.

  • Are these suitable for commercial use?

    Yes, they’re designed still a great box and widely used in commercial operations.
